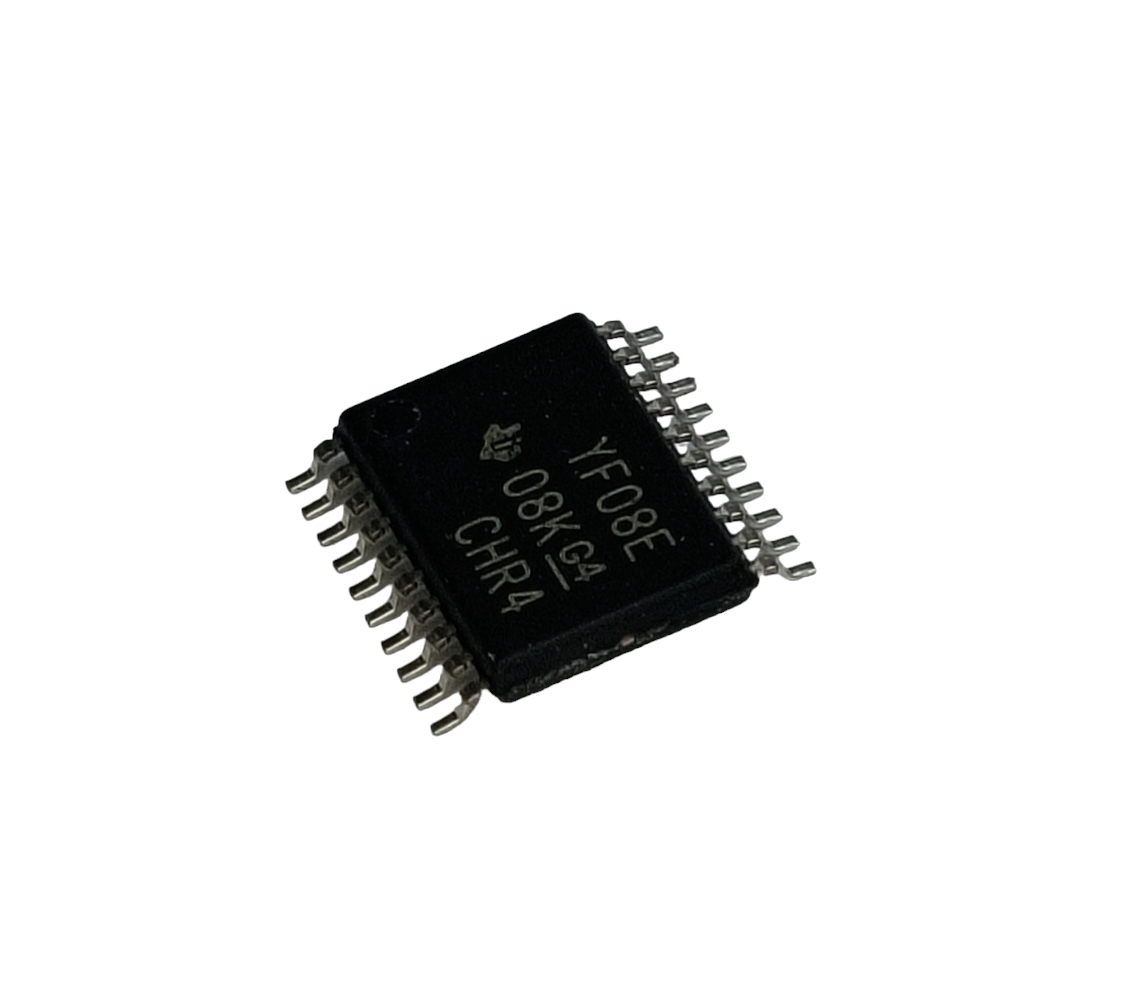

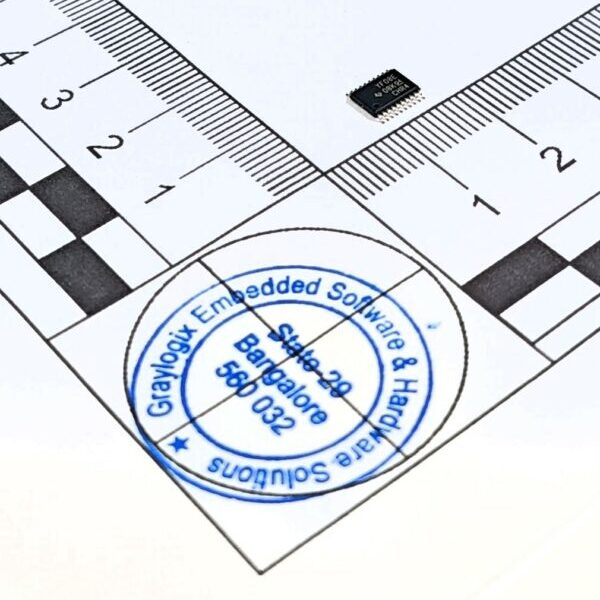

TXS0108EPWR TTL Level Shifter C17206

Product Overview

TXS0108EPWR TTL Level Shifter C17206

This 8-bit noninverting translator uses two separate configurable power-supply rails. Also the A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V.Furthermore this allows for low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.

The high-impedance state places all outputs in that condition when the output-enable (OE) input is low.Tying OE to GND through a pulldown resistor ensures the high-impedance state during power up or power down, The current-sourcing capability of the driver determines the minimum value of the resistor

Features of TXS0108EPWR TTL Level Shifter C17206

• No Direction-Control Signal Needed
• Max Data Rates
  – 60 Mbps (Push Pull)
  – 2 Mbps (Open Drain)
• 1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (VCCA ≤ VCCB)
• No Power-Supply Sequencing Required – Either VCCA or VCCB Can Be Ramped First
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 (A Port)
  – 2000-V Human-Body Model (A114-B)
  – 150-V Machine Model (A115-A)
  – 1000-V Charged-Device Model (C101)
• IEC 61000-4-2 ESD (B Port)
  ±8-kV Contact Discharge
  ±6-kV Air-Gap Discharge
