Description
Product Overview

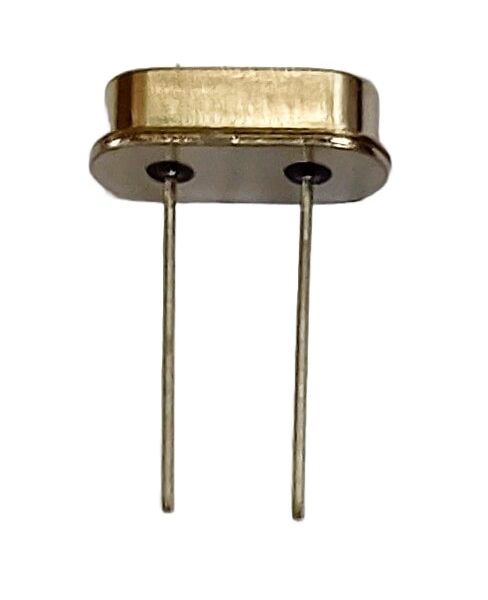

22.1184 Mhz TH crystal is a low cost crystal oscillator with oscillation frequency of 22.1184Mhz.A 22.1184 MHz (megahertz) TH crystal refers to a quartz crystal resonator with a frequency of 22.1184 million cycles per second. “TH” stands for Through-Hole, indicating that the crystal is designed to be mounted onto a printed circuit board (PCB) using through-hole mounting techniques.
Features
- Crystal Case Type : Metal Can
- Crystal Mounting Type : Through Hole
- Frequency : 22.1184 MHz
- Frequency Stability : ± 50ppm
- Frequency Tolerance: ± 30ppm
- Load Capacitance : 10 pF
- No. of Pins : 2
- Operating Temperature Max : 70 °C
- Operating Temperature Min : -10 °C
- Operating Temperature Range : -10°C to +70°C
