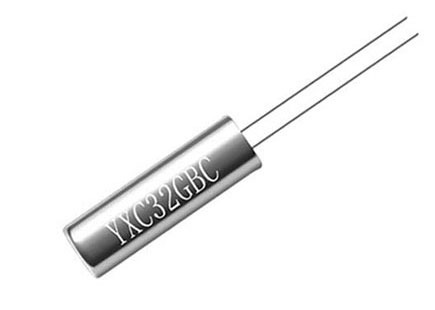

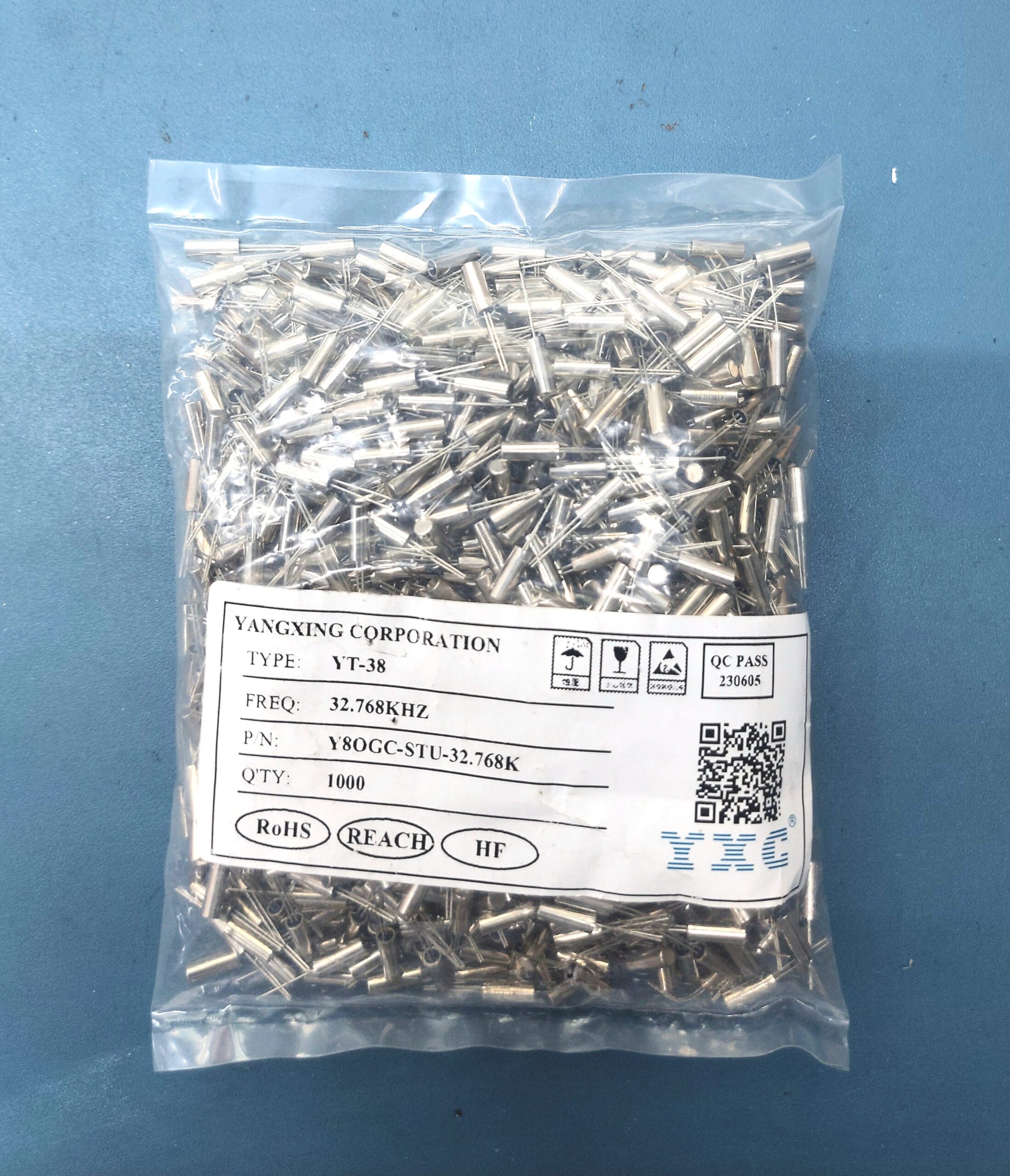

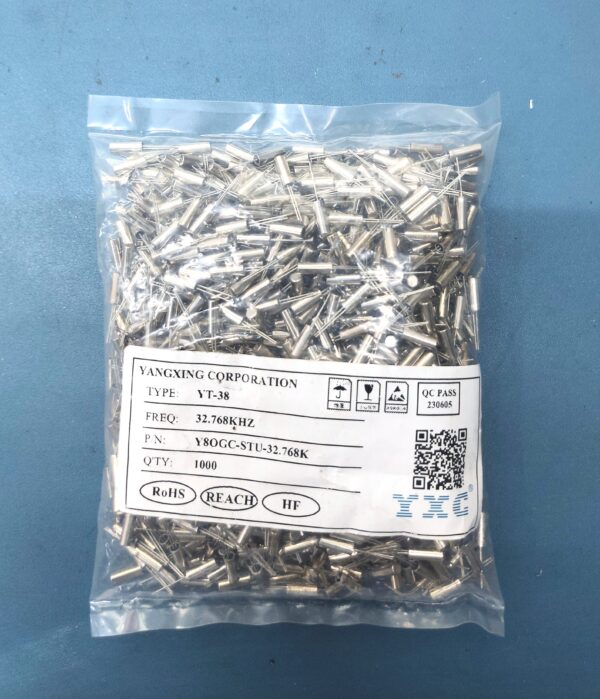

Y8OGC-STU-32.768K 32.768Khz Crystal

Original price was: ₹5,420.00.Current price is: ₹3,875.00. Incl. GST

Y8OGC-STU-32.768K 32.768Khz Crystal – quality passive component for circuits and labs. ₹3875.00 | Pack pricing | Pan-India delivery from Syntronix, Bangalore.

Compare
SKU: SYN-PAS-0069 Category: Tag:
Description

Description

Y8OGC-STU-32.768K 32.768Khz Crystal

Features of Y8OGC-STU-32.768K 32.768Khz Crystal:

  • Item / Type YT-38
  • Nominal Frequency Range 32.768KHz

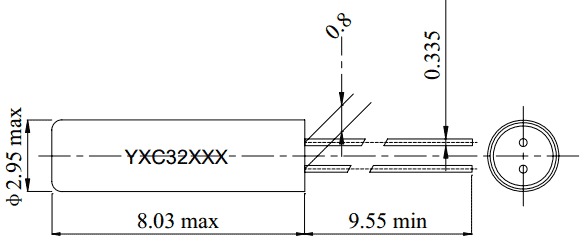

  • Dimensions 3.0 x 8.0 mm
  • Load Capacitance 12.5pF, or specify
  • Frequency Tolerance (at 25 ℃) ± 5 ppm , ± 10 ppm , or specify
  • Frequency Versus Temperature Characteristics 0-120ppm, or specify
  • Turnover Temperature -(0.036±0.01)*-6 /℃2
  • Operating Temperature -20 ~ +70 ℃ , -40 ~ +85 ℃, or specify
  • Storage Temperature -55 ~ +125℃
  • Shunt Capacitance 2.0pF Max
  • Level of Drive 1.0 μW Tvp
  • Frequency Aging (at 25 ℃) ± 3 ppm / year Max.
  • Insulation Resistance More Than 500M at DC 100V
  • Equivalent Series Resistance (ESR) 40KΩ Max.

Click here for the data sheet:
