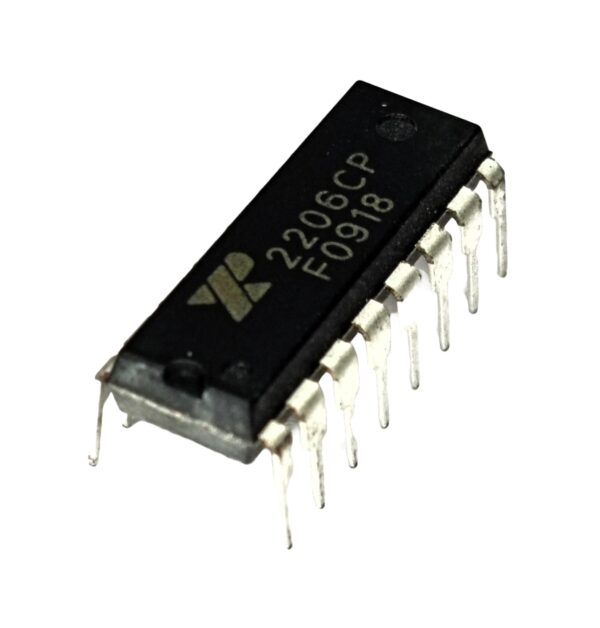

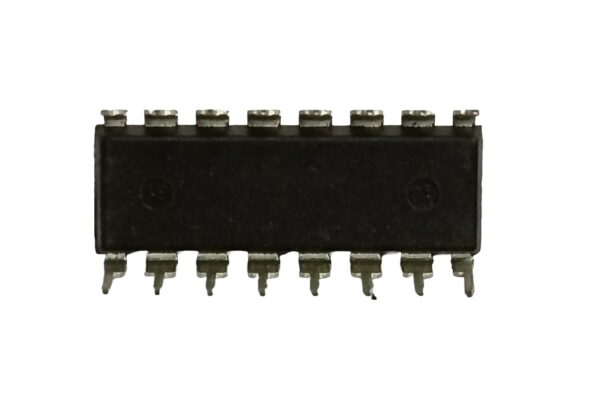

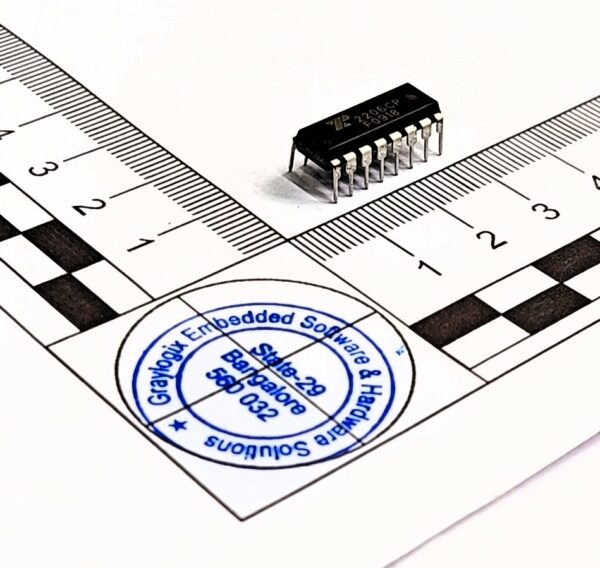

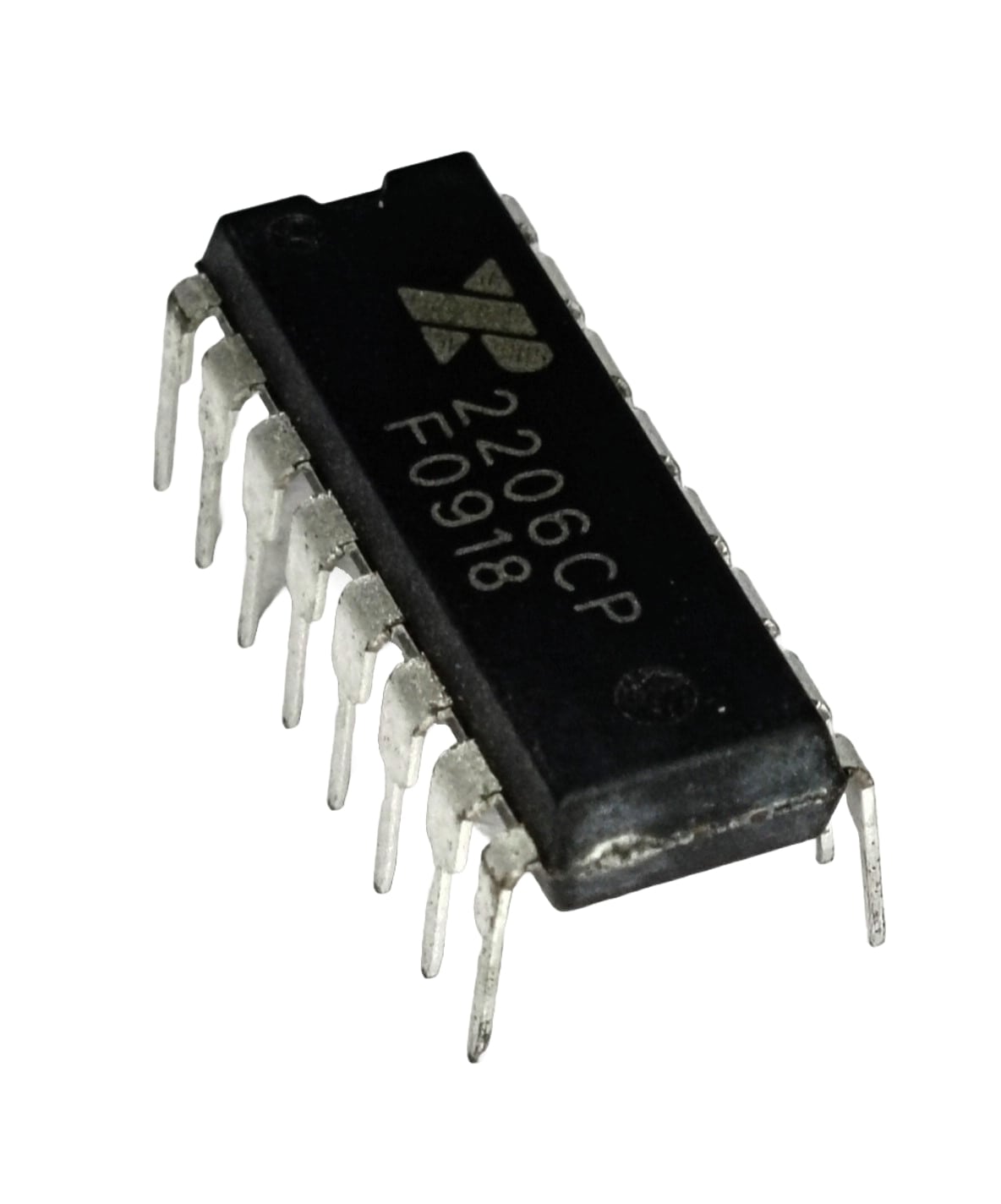

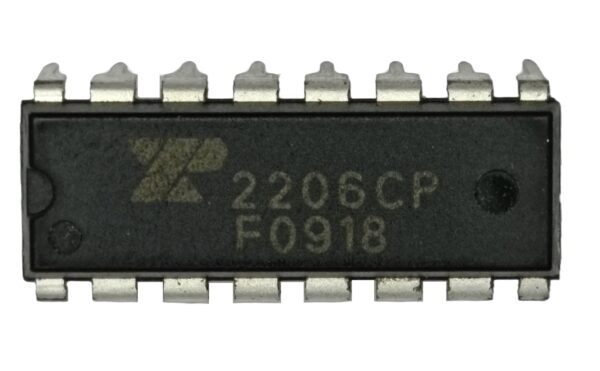

XR2206CP Monolithic Function Generator

Product Overview

XR2206CP Monolithic Function Generator IC is a monolithic function generator integrated circuit capable of producing high quality sine, square, triangle, ramp, and pulse wave forms of high-stability and accuracy. The circuit is ideally suited for communications, instrumentation, and function generator applications requiring sinusoidal tone, AM, FM, or FSK generation.

It’s a versatile and widely used IC for generating waveforms in electronic circuits.it’s crucial to follow the manufacturer’s recommendations and guidelines for circuit design and component values to achieve the desired waveform characteristics and frequency range.

Features of XR2206CP Monolithic Function Generator

• Has a Low-Sine Wave Distortion, 0.5%, Typical

• Excellent Temperature Stability, 20ppm/°C, Typ.

• Wide Sweep Range, 2000:1, Typical

• Low-Supply Sensitivity, 0.01%V, Typ.

• Linear Amplitude Modulation

• TTL Compatible FSK Controls

• Wide Supply Range, 10V to 26V

• Adjustable Duty Cycle, 1% TO 99%

Specifications of XR2206CP Monolithic Function

• Power Supply-26V
• Power Dissipation-750mW
• Derate Above 25C-5mW/C
• Total timing Current-6 mA
• Storage Temperature-65C to 150C

Applications

• Waveform Generation
• Sweep Generation
• AM/FM Generation
• V/F Conversion
• FSK Generation
• Phase-Locked Loops (VCO)

 Download XR2206 Function Generator IC Datasheet
