Description
UHF RFID Reader Ultra High Frequency 865~868MHz & 902 ~920 MHz is an Integrated Antenna with Reader.
They are designed to read all types of Transponders in the designated frequency range. These Readers are designed with a Antenna integrated to a Reader inside a Robust Chamber for Single Lane Operations.
These readers are available in options of Long Range and Mid Range Integrated Readers. The Robust weather proof body have a Integrated Circuit with Antenna mounted on the Reader provides ease of operation with a Single Integrated Device having multiple connection protocols. All reader comply to ISO 18000~6B & ISO 18000~6C (EPC GEN2)
CHARACTERISTICS of UHF RFID Reader:
- Frequency Range: ISM 865～868MHz or ISM 902～928MHz
- Operation Mode: FHSS
- RF Power: 0~30dBm,software adjustable
- Reading Speed: Software Programmable, Average Reading per 64Bits：<6ms
- Reading Mode: Timing or Touch, Software Programmable

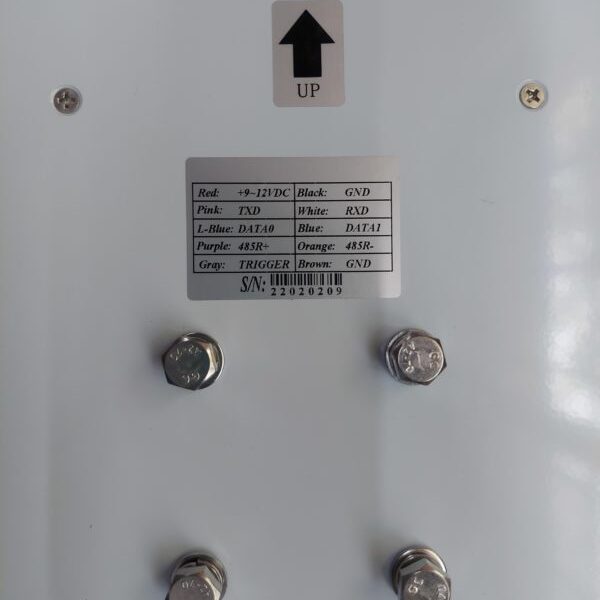

- Data Ports: Wiegand26/34, RS485, RS232, RJ45
- Data Input Port: Trigger input one team, anti-collision & multi-reading
- Reading Range: 12m
- Reading Clue: Buzzer
- Antenna: Built-in line polarization Antenna，Gain:12dbi
- Power Supply: DC＋9V (Power Adapter),DC+12
- Dimension: 440mm×440mm×50mm
- Weight: 2 Kg
- Size: 17 x 17 Inches
- Operation Temp: －20℃~＋80℃
Typical Applications:
- LOGISTICS & WAREHOUSE MANAGEMENT
- PATIENT ID MANAGEMENT
- ASSET TRACKING
- PARKING MANAGEMENT
- PRODUCTION LINE MANAGEMENT
- ACCESS CONTROL
- PRODUCT COUNTERFEIT PROOF PROTECTION
