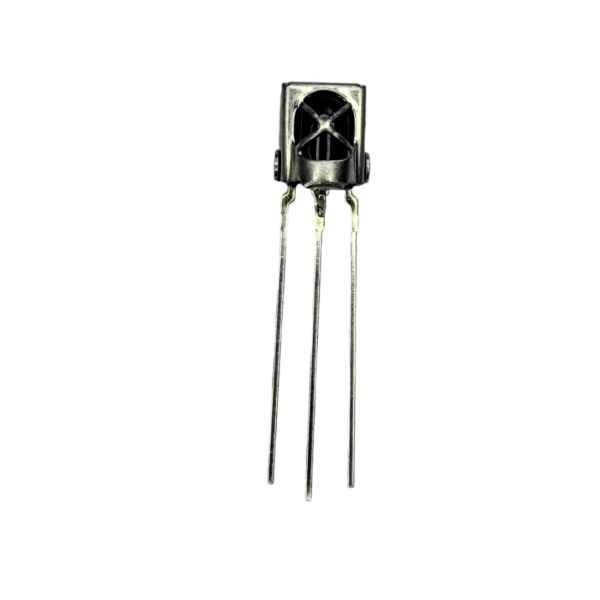

TSOP1838 IR Receiver

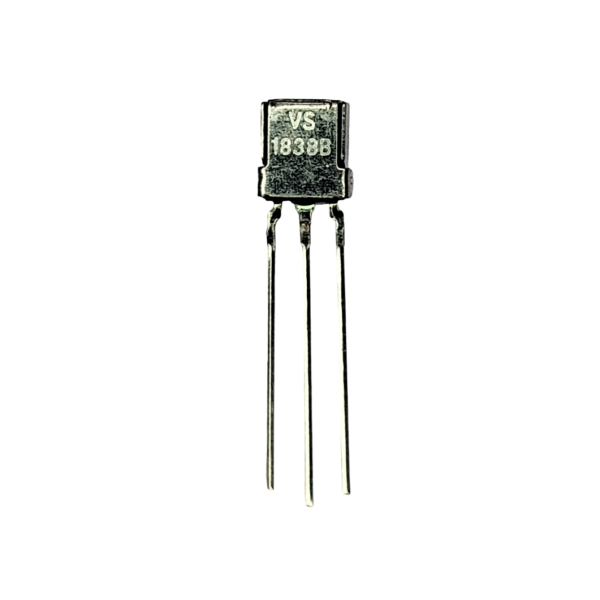

The 1838B is miniaturized infrared receivers for remote control and other applications requiring improved ambient light rejection. The separate PIN diode and preamplifier IC are assembled on a single lead frame.

Features of TSOP1838 IR Receiver

• Internal filter for PCM frequency.
• Inner shield, good anti-interference ability.
• High immunity against ambient light.
• Improved shielding against electric field disturbance
• 3.0V or 5.0V supply voltage; low power consumption.
• TTL and CMOS compatibility.
• Suitable transmission code: NEC code,RC5 code.
• Universal receiver. 38 KHz
• Infrared receiver.
• Infrared remote control receiver.

Applications

• Optical switch
• Light detecting portion of a remote control
• AV instruments such as Audio, TV, VCR, CD, MD, DVD, etc.
• Home appliances such as Air-conditioner, Fan, etc.
• CATV set-top boxes
• Multi-media Equipment.
