Product Overview

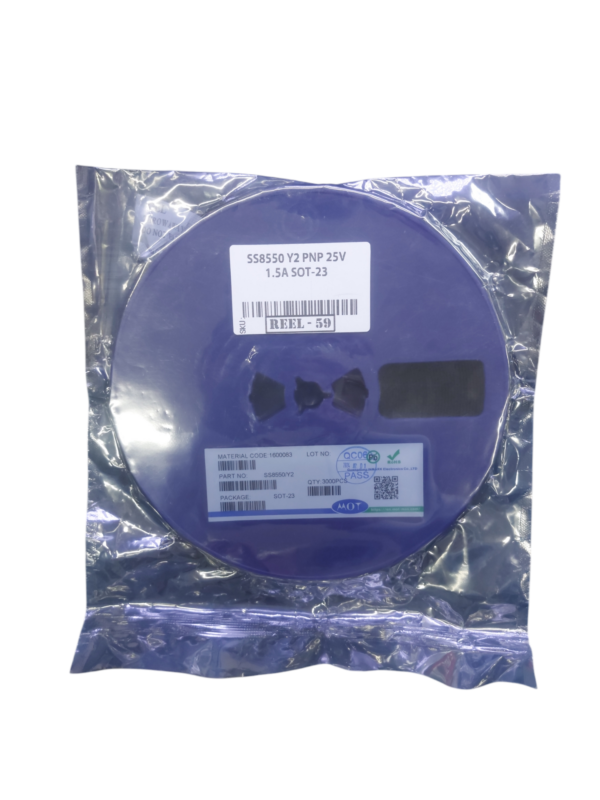

SS8550 Y2 PNP 25V 1.5A SOT-23
S8550 is a PNP transistor hence the collector and emitter will be left open (Reverse biased) when the base pin is held at ground and will be closed (Forward biased) when a signal is provided to base pin. It has a maximum gain value of 300; this value determines the amplification capacity of the transistor normally S8550. Since it is very high it is normally used for amplification purposes.
Specifications of SS8550 Y2 PNP 25V 1.5A SOT-23
- Manufacturer Part No: SS8550/Y2
- Manufacturer: MOT
- Transistor Polarity: PNP
- Configuration: Single
- Collector-Base Voltage: -40V
- Collector-Emitter Voltage: -25V
- Emitter-Base Voltage: -6V
- Collector Current: -1500 mA
- Collector Power Dissipation: 300 mW
- Temperature Range: -55°C ~ 150°C
- Mounting Style: SMD/SMT
Applications
- Audio Amplification Circuits
- Class B Amplifiers
- Push pull Transistors
- Circuits where high gain is required
- Low signal applications
