Description

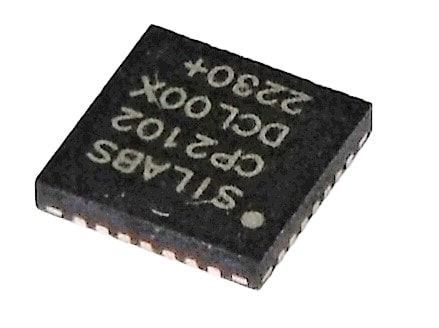

The CP2102 USB to UART Bridge Controller it is a highly integrated IC providing a simple solution for updating RS-232 designs to USB using a minimum of components and PCB space. The CP2102/9 includes a USB 2.0 full speed function controller, USB transceiver, oscillator, EEPROM or EPROM, and asynchronous serial data bus (UART) with full modem control signals in a compact 5 x 5 mm QFN-28 package.
Features of CP2102 USB to UART:
- USB 2.0 compliant, full-speed (12 Mbps)
- No external crystal required
- Up to 1024 Bytes of EEPROM or OTP ROM
- User-programmable custom Baud rates
- Supports all modem interface signals
- Baud Rates : up to 2 Mbps
- Industrial temperature –40 to +85 °C
Applications:
- USB to RS-232 converters
- USB to Dual RS-232 converters
- USB to RS-422/RS-485 converters
- Upgrade of legacy RS-232 devices
- PDA USB interface cable
- Cellular phone USB interface cable
- Barcode readers
- POS terminals
- PC peripherals
Download CP2102 Single Chip USB to UART Bridge Controller Datasheet
