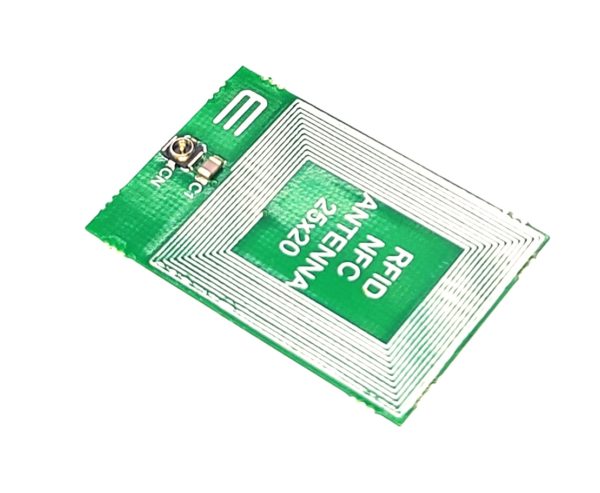

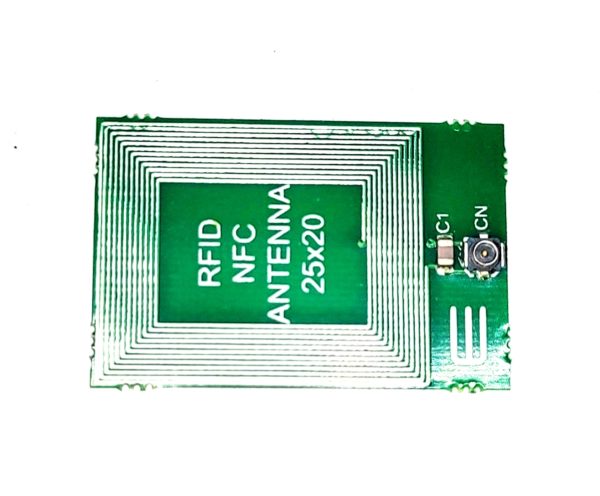

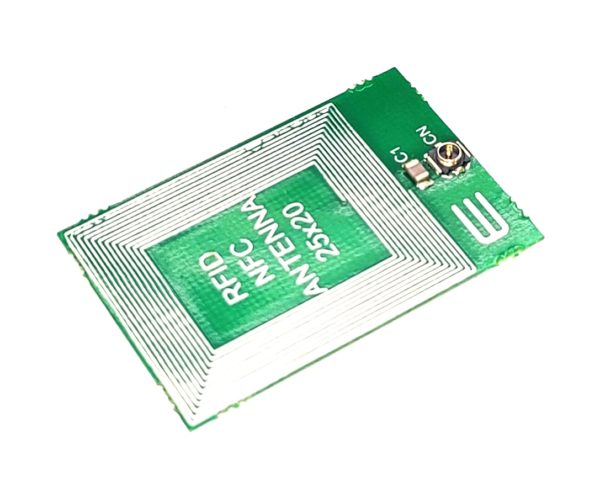

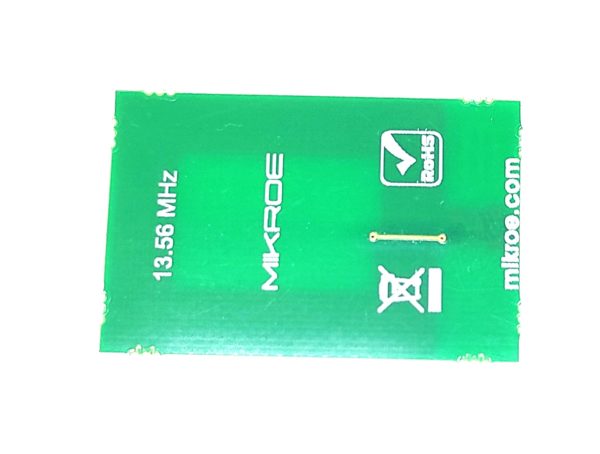

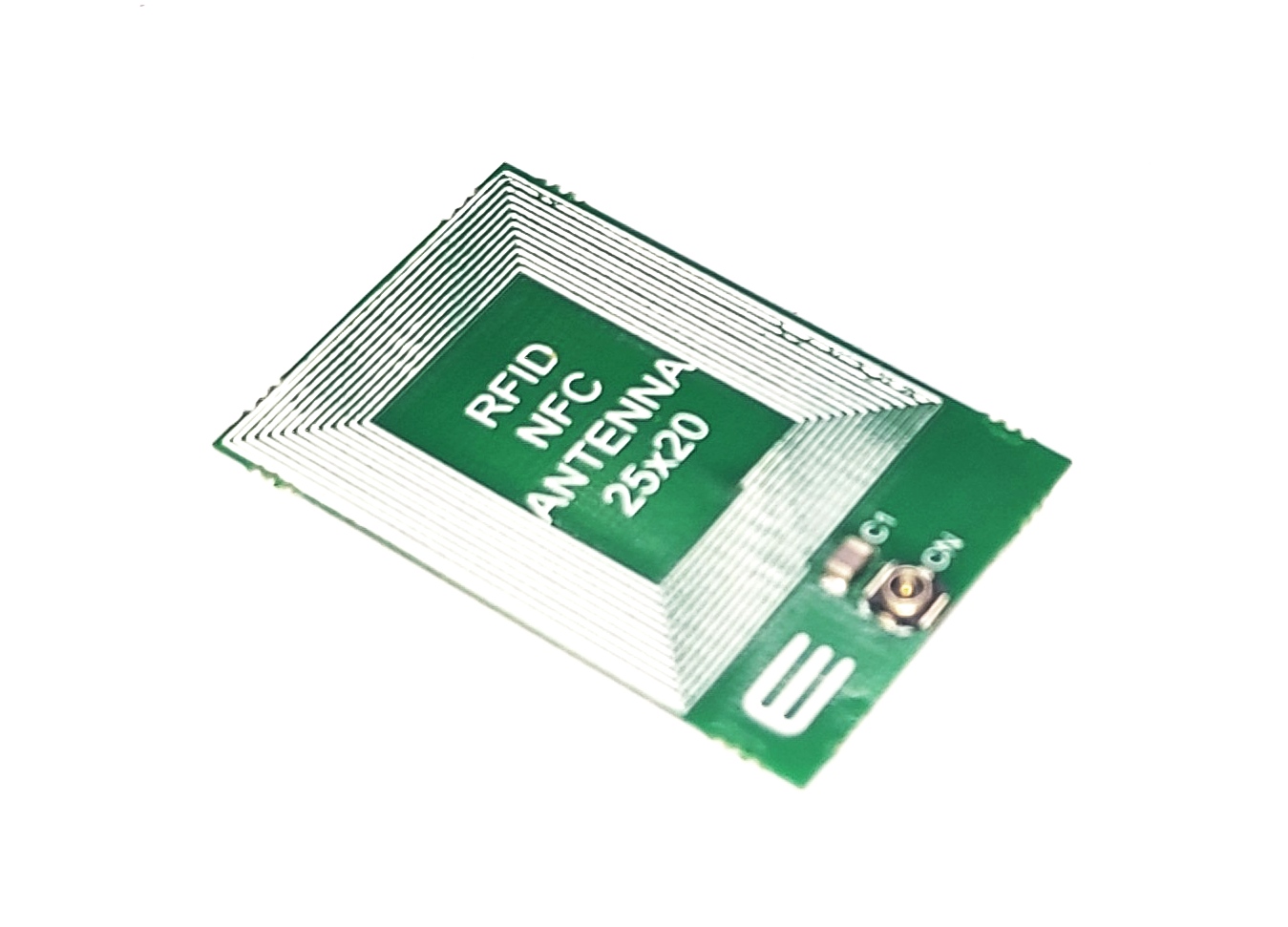

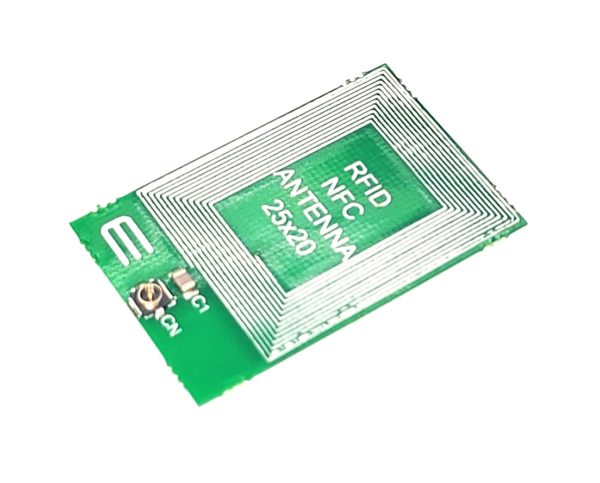

NFC READER MODULE (Rectangular NFC 25×20 Antenna)

Rectangular NFC 25×20 Antenna design is an essential part of NFC / RFID readers implementation. Having the right antenna for your application is crucial to get optimum read range and reliability with NFC / RFID in your products. A good antenna design from the start also helps you to reduce time-to-market. Therefore, we are offering different shape and size antennas that can be selected for your specific use case.

This antenna can be connected to existing NFC Extended Click board or any device with the male U.FL connector. offers antenna without extension cable therefore you may order one UMCC female to female cable adapter.

• Frequency range: 13.56 MHz
• Shape: Rectangular
• Coil size: 25mm x 20mm
• Antenna width: 21mm
• Antenna length: 32mm
• Coil turns: 12
