Product Overview

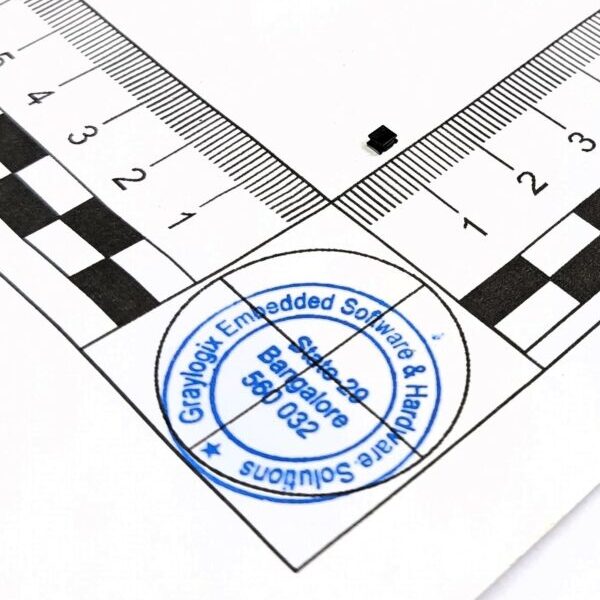

LQH32PZ100MNCL SMD Inductor
Specifications of LQH32PZ100MNCL SMD Inductor
- Inductance : 10µH ±20%
- Inductance test frequency : 1MHz
- Rated current (Isat) (Based on Inductance change) : 1000mA
- Rated current (Itemp) (Based on Temperature rise)
900mA(Ambient temp.85℃)
450mA(Ambient temp.105℃) - Max. of DC resistance : 0.354Ω
- Avg. of DC resistance : 0.295Ω ±20%
- Self resonance frequency (min.) : 30MHz
- Operating temperature range (Self-temperature rise is included) : -40℃ to 125℃
- Operating temperature range (Self-temperature rise is not included) : -40℃ to 105℃
- Class of magnetic shield : Magnetic Resin
- Series : LQH32PZ_NC
