Helix Antenna with Sleeve

Original price was: ₹20.00.Current price is: ₹15.00. Incl. GST

Helix Antenna with Sleeve – RF component for wireless & communication projects. ₹15.00 at Syntronix, Bangalore. Pan-India delivery.

Compare
SKU: SYN-RF-0036 Category: Tag:
Description

Description

Product Overview

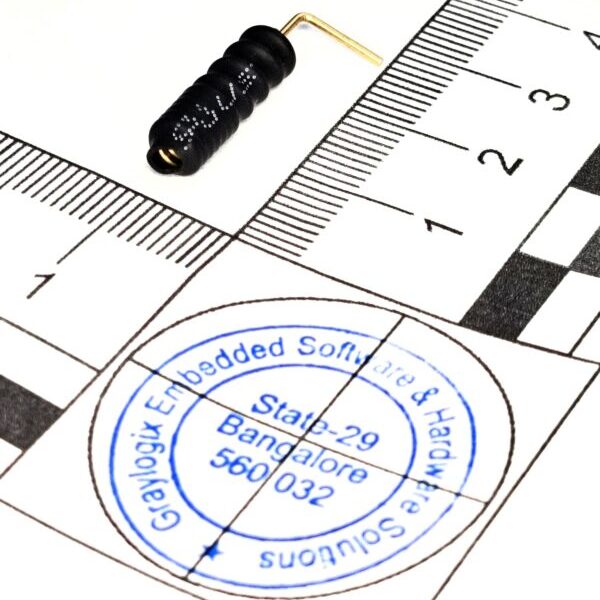

Helix Antenna with Sleeve

Features of  Helix Antenna with Sleeve

  • Compact Size
  • Low cost
  • Tin and Nickel plated for corrosion-free
  • Antennas with rubber sleeve to protect from sparks

Specifications of Helix Antenna

  • Frequency (Mhz) : 800/860/868/900 Mhz
  • Gain : ~ 1.5 dBi (depends on PCB ground plane)
  • Impedance : 50 Ohms
  • VSWR < 1.5
  • Polarization : Vertical
  • Power Handling (W) : 10
  • HPBW : H:360 Degree ; V:30 Degree
  • Connector : Direct Solder
  • Housing : PB (Passivated)
  • Weight : <1g
  • Operational Temperature : -30 to 60 C
  • Humidity : 5-95%

Applications of Helix Antenna

  • Sub Ghz
  • Smart Meters
  • long Range(LoRa)
  • Low power Radio (LPR)

Click here for more info

Additional information

Additional information

Weight

0.1 kg

Dimensions

5 × 10 × 5 cm
