G2RL-1A-E DC12 Omron Power Relay

8,700,120.00 Incl. GST

SKU: M-61 Category: Tag:
Description

Description

Product Overview

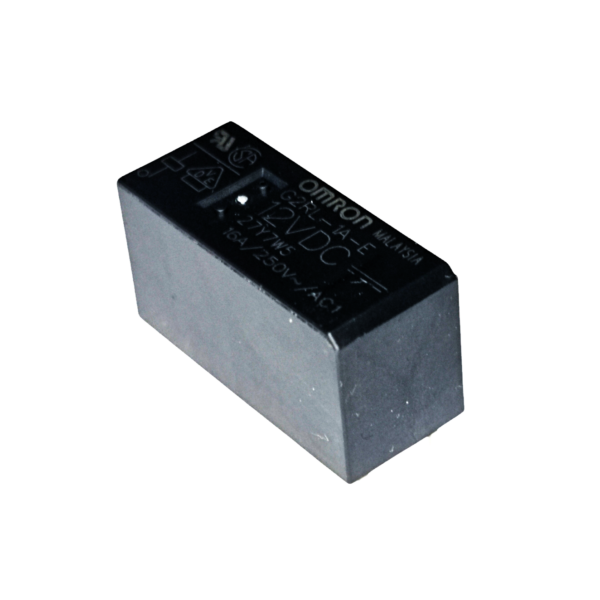

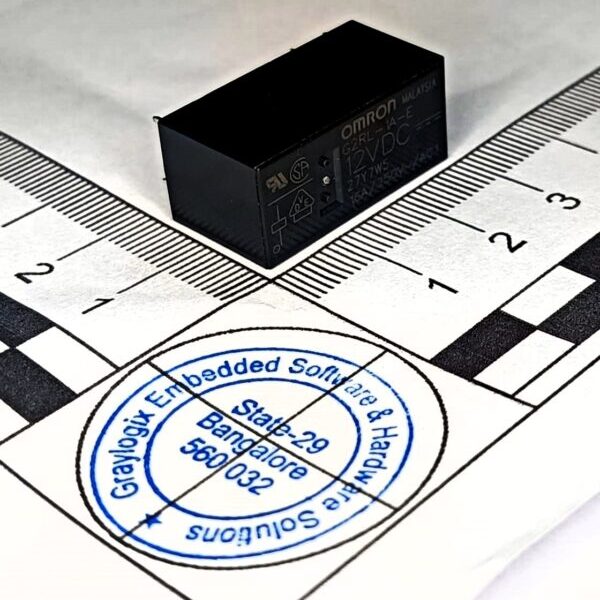

G2RL-1A-E DC12 Omron Power Relay

RELAY GEN PURPOSE SPST 16A 12V

Specifications of G2RL-1A-E DC12 Omron Power Relay

  • Series  :  G2RL
  • Mounting Type: Through Hole
  • Coil Voltage : 12VDC
  • Contact Form : SPST-NO (1 Form A)
  • Contact Rating (Current) : 16 A
  • Switching Voltage :440VAC, 300VDC – Max
  • Load – Max Switching : 7040VA, 4800W
  • Coil Current : 33.3 mA
  • Coil Type : Non Latching
  • Termination Style : PC Pin
  • Must Operate Voltage :8.4 VDC
  • Must Release Voltage : 1.2 VDC
  • Operate Time : 15 ms
  • Release Time : 5 ms
  • Operating Temperature : -40°C ~ 85°C
  • Relay Type : General Purpose
