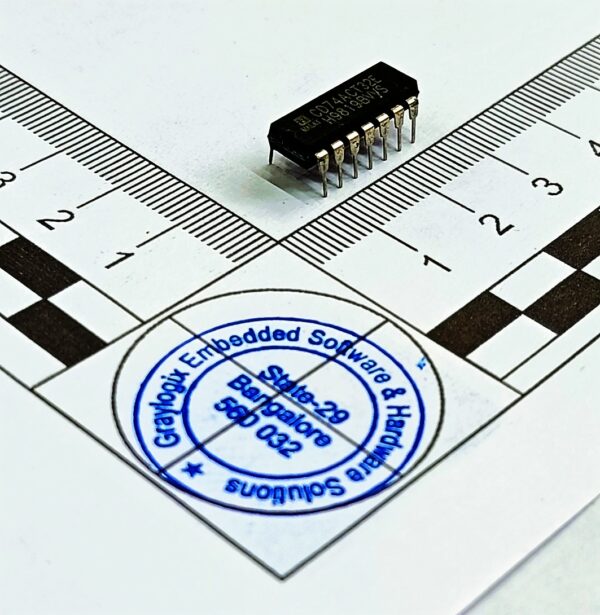

CD74ACT32E Quad 2 Input OR Gate

Product Overview

CD74ACT32E Quad 2 Input OR Gate IC is a Logic Gates and Inverters with Quad 2-Input OR Gate.

Here’s a breakdown of the information encoded in the part number:

• “CD” typically indicates that the IC is manufactured by Texas Instruments (TI), a well-known semiconductor company.
• “74” often signifies that the IC is part of the 74 series of logic ICs. The 74 series is a popular family of digital logic ICs with various functions.
• “ACT” suggests that this IC is part of the Advanced CMOS Technology (ACT) family, which is known for its low power consumption and high-speed operation.
• “32” indicates that this IC is a 2-input OR gate.
• “E” may refer to the package type or temperature range, but without more context, it’s challenging to determine its exact meaning.

Features Of QUAD 2 INPUT OR GATE

• Inputs Are TTL-Voltage Compatible
• Buffered Inputs
• Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption
• Balanced Propagation Delays
• ±24-mA Output Drive Current
  – Fanout to 15 F Devices
• SCR-Latchup-Resistant CMOS Process and Circuit Design
• Exceeds 2-kV ESD Protection Per MIL-STD-883, Meth

Specifications Of QUAD 2 INPUT OR GATE

• Storage Condition Dry storage cabinet & Humidity protection package
• Supply Voltage Min-4.5 V
• Supply Voltage Max-5.5 V
• Series-74ACT
• Propagation Delay Time-Propagation Delay Time
• Product-Single-Function Gate
• Operating Temperature Range-
• 55 C to + 125 C
• Number of Output Lines-1 output
• Number of Inputs-2
• Number of Input Lines2- Input
• Number of Gates-4 Gate
• Number of Circuits-4
• Mounting Style-Through Hole
• Mounting Type-Through Hole
• Operating Temperature- 55 C
• Max Propagation Delay V Max CL-12.1ns @ 5V, 50pF
• Maximum Operating Temperature+ 125 C
• Low Level Output Current-24 mA
• Logic Type-OR Gate
• Logic Level Low-0.8V
• Logic Level High-2V
• Logic Function-OR
• Logic FamilyACT
• High Level Output Current- 24 mA
• Current Quiescent Max-4μA
• Current Output High Low-24mA, 24mA

 Download CD74ACT32E QUAD 2 INPUT OR GATE Datasheet
