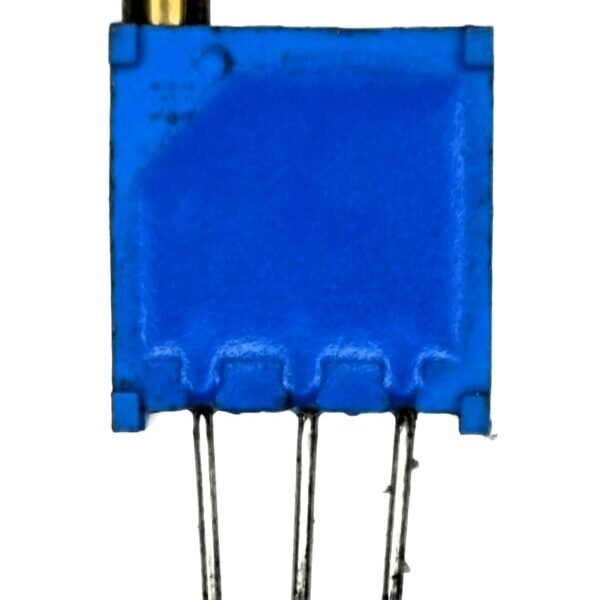

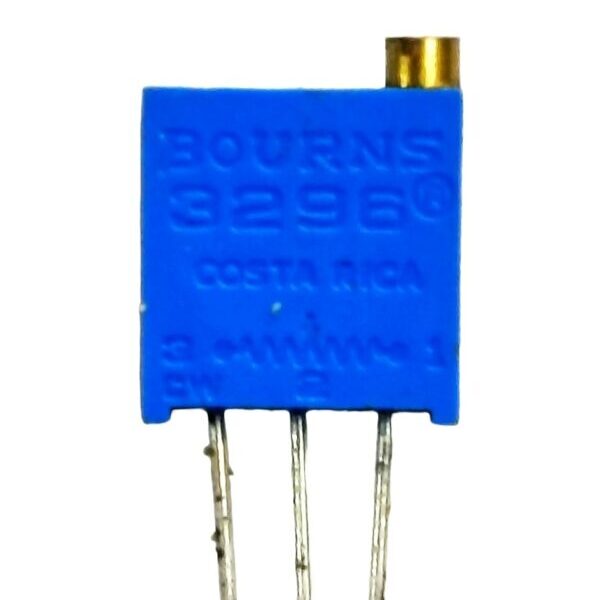

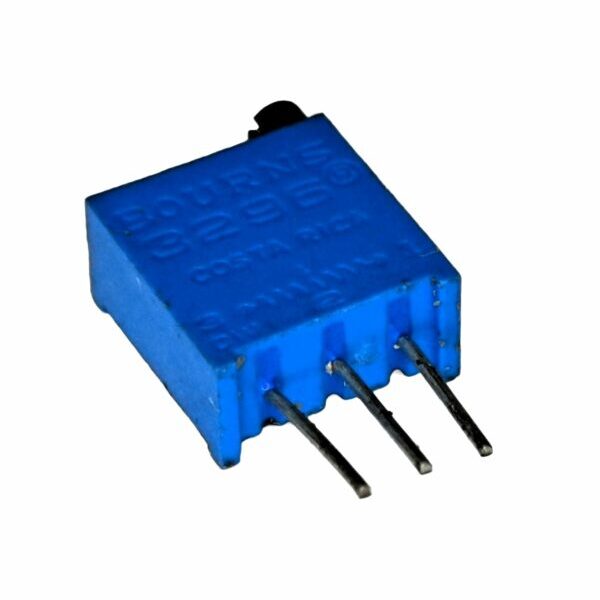

1K 3296 Bourns Preset W102

Product Overview

1K 3296 Bourns Preset W102 Potentiometer is is a high accuracy variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value.

Specification of 1K 3296 Bourns Preset W102

• Series: 3296
• Resistance Tolerance : 10%
• Mounting Style: PCB Mount
• Adjustment: Top Slot
• Number of Turns: Multiturn
• Resistance:1K Ohms
• Power Rating: 500 mW (1/2 W)
• Termination Style: PC Pin
