Description
Description:

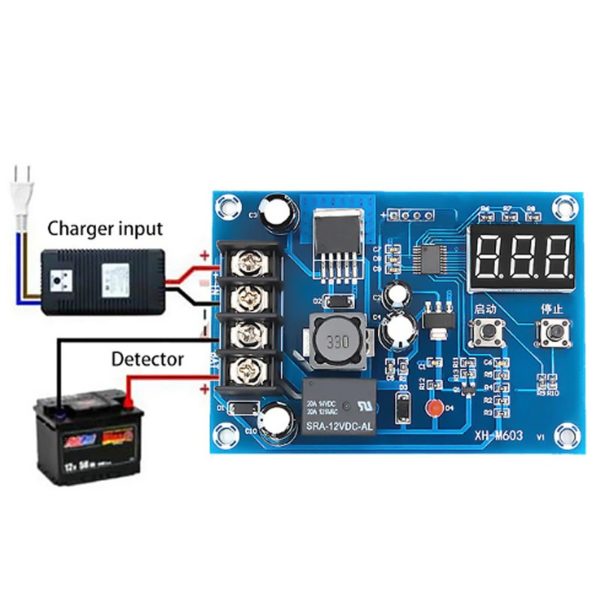

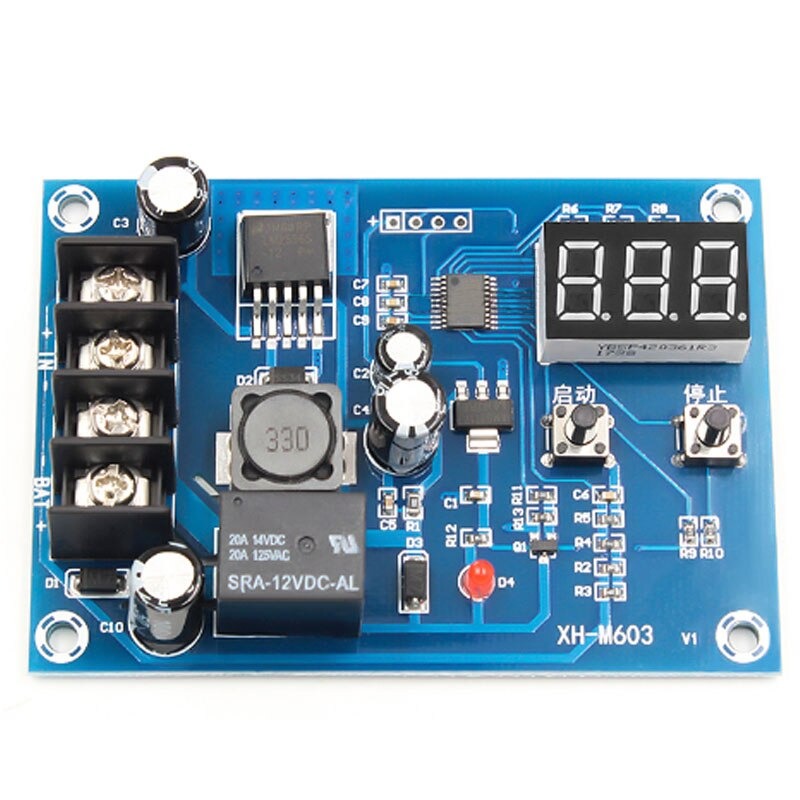

XH-M603 Charging Control Module 12-24V Storage Lithium Battery Charger Control Switch Protection Board
Product Introduction:
- Model:XH-M603
- Input Voltage: DC 10-30V
- Display Precision:0.1V
- Control Precision:0.1V
- Output Type: direct output
- Voltage Tolerance:+/-0.1V
- Application Fields:12-24V storage battery
- Size;82*58*18mm
Using Method:
1.Set Starting Voltage: in normal display voltage state, press the button will display start charging voltage; long press for 3s the digital tube will flash; you can start or stop button to set starting up charge voltage value
2.Set Stop Voltage: in normal display voltage state, press the button will display stopping charge voltage; long press the button for 3s the digital tube will flash; you can start or stop button to set stopping charge voltage value
3.Factory Reset: in power on state press the start/stop button at the same time, digital tube will display 888;that represents factory reset settings.
