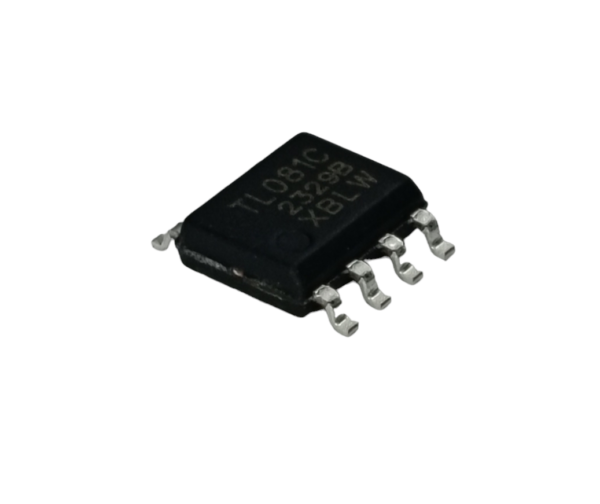

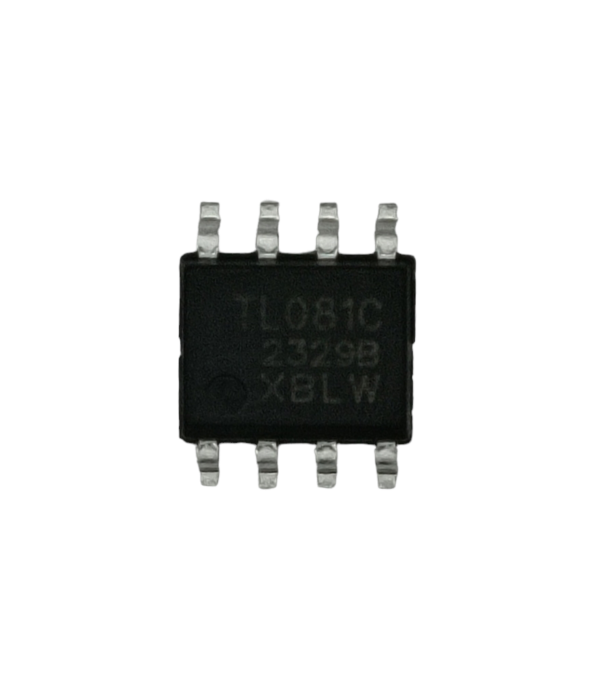

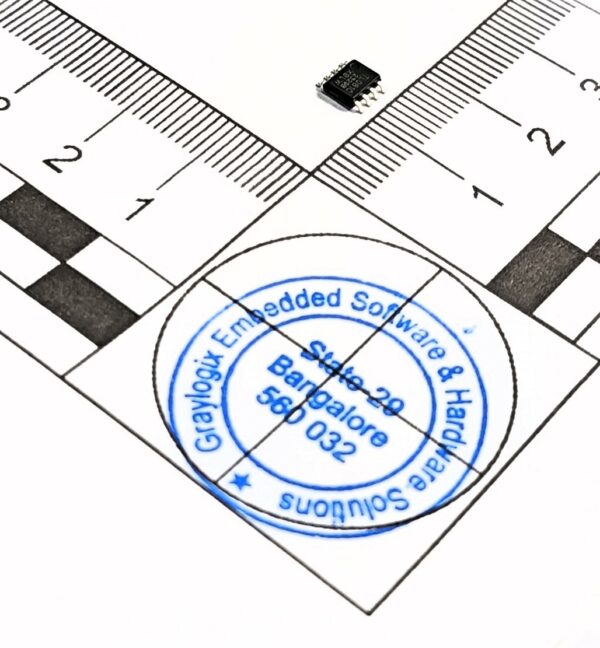

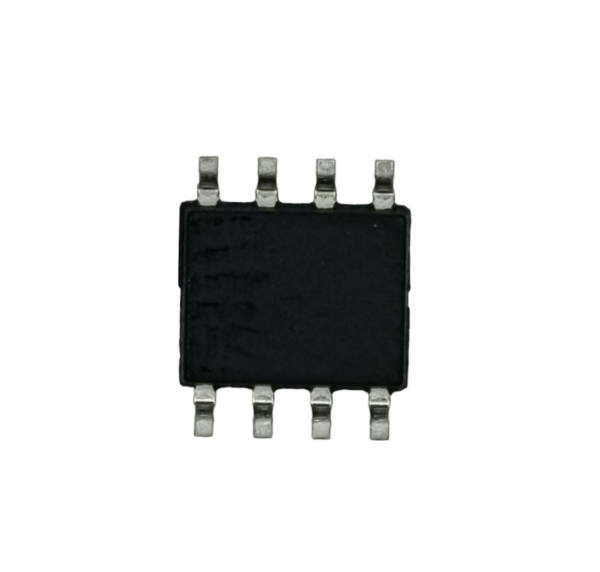

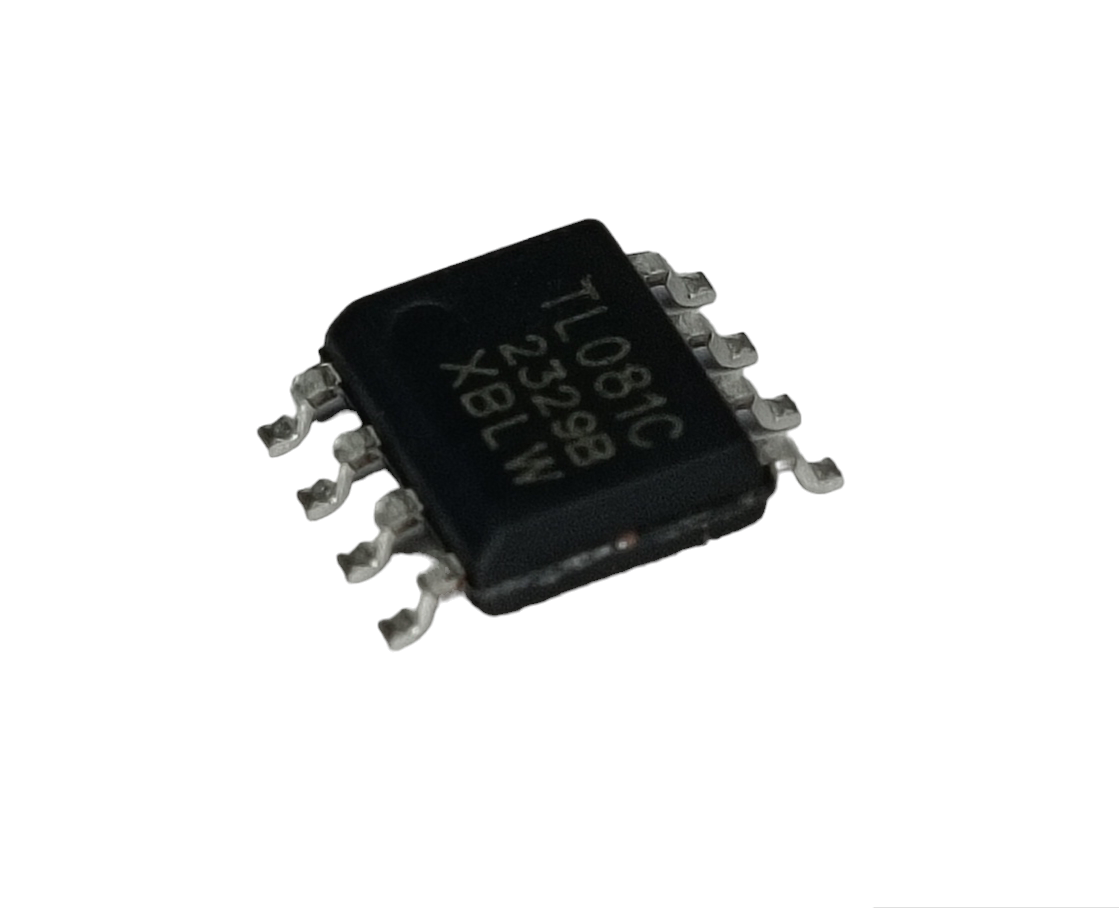

TL081CDTR Operational Amplifier SOIC8

TL081CDTR Operational Amplifier SOIC8

The TL081 is a high-speed J-FET single operational amplifier that is composed of high-voltage J-FET and bipolar transistors

Features of TL081CDTR Operational Amplifier SOIC8

• Lower power consumption
• Wide common mode and differential mode input voltage range
• Low input bias current and offset current
• Output short circuit current protection
• High input impedance
• Internal frequency compensation
• High conversion rate
• High gain bandwidth product

Specifications

• Supply Current : 1.8mA
• Current – Input Bias(Ib) : 200nA
• Number of Circuits : Single
• Operating Temperature : -20℃~+85℃
• Gain Bandwidth Product(GBP) : 3MHz
• Supply Voltage : 3V~18V
• Common Mode Rejection Ratio (CMRR) : 85dB
• Voltage – Input Offset(Vos) : 5mV
