Description
Product Overview

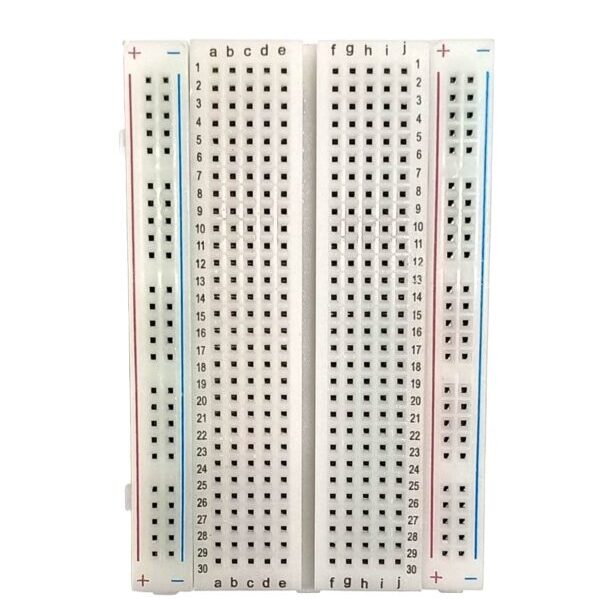

Solderless 400 pin breadboard is a high-quality breadboard with power lanes and printed top face for easy prototyping. A breadboard is used to make up temporary circuits for testing or to try out an idea. No soldering is required so it is easy to change connections and replace components. Eventually it is Reusable for fast build a prototype of an electronic circuit being that will accept transistors, diodes, LEDs, resistors, capacitors and virtually all types of components – No soldering required – Can modify or revise the circuits easily Fit for jumper wire of 0.8mm diameter – Standard 2.54mm hole spacing Adhesive sheet on the backside of the board – Multiple breadboards can be spliced together too. It’s a common type of breadboard that features 400 holes or connection points for inserting and connecting electronic components like resistors, capacitors, integrated circuits (ICs), and wires.
Features of Solderless 400 pin breadboard
- 400 tie points
- Double strip, Total 300 tie points
- 2 Power lanes, Total 100 tie points in power lanes
- Perfect for Arduino shield prototyping and testing
- Plastic housing, metal contact clips
Specifications
- Maximum Voltage(V)-300
- Maximum Operating Current (A)-3 – 5 A
- Allowed Wire Size (AWG)-29 – 20
- Length (mm)-82
- Width (mm)-54
- Height (mm)-10
Click here to buy other types of Bread Boards:
