AM2305B-Temperature and Humidity Sensor

Product Summary:

AM2305B-Temperature and Humidity Sensor has calibrated digital signal output. It is equipped with a newly designed ASIC chip, an improved MEMS semiconductor capacitive humidity sensor and a standard temperature sensor, its performance has reached the industry’s advanced level. It has single-bus communication signal, where in the transmission distance can reach more than 20 meters, making it the best choice for various applications, small in size and low in power consumption. It uses direct output of humidity and temperature information. Users do not need to perform secondary calculations on the digital output, and do not need to perform temperature compensation on the humidity to obtain accurate information.

Product Characteristics AM2305B-Temperature and Humidity Sensor :

• Fully calibrated
• Digital output
• Standard single bus output
• Excellent long-term stability
• Low power consumption

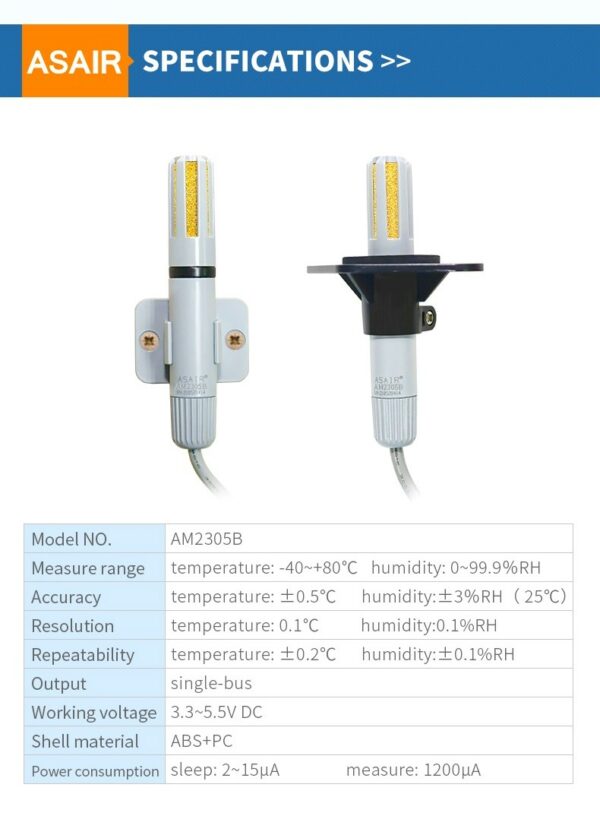

Features/Specs :

• Model Number: AM2305B
• Supply Voltage: 3.3 ~ 5.5VDC
• Measuring Range: -40 ~ 80℃
• Interface: Digital
• Temperature Range: -40~80℃
• Accuracy: ±0.3℃;±3%RH
• Features: Metal screen/capacitance sensor
• Sensor Type: AHT10 integration sensor
• Output: Digital Sensor, Digital 1 Wire
• Humidity Range: 0~99.9%RH

Applications:

• Environmental monitoring
• Ventilator / respirator
• Anesthesia machine
• Spraying machine
• Medical apparatus and instruments
• The automatic control
• Experimental apparatus

Package Includes: one piece of AM2305B-Temperature And Humidity Sensor along with its accessories.
